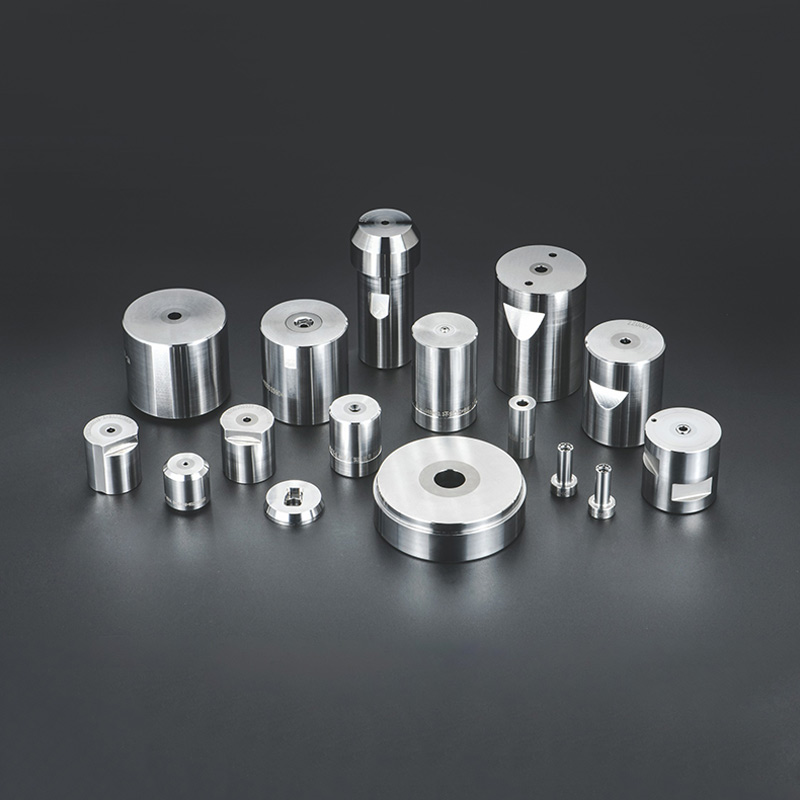

Carbide Dies play a pivotal role in the manufacturing industry, especially in processes that require high precision, durability, and resistance to wear. These tools are essential for shaping, cutting, or forming materials in various industrial applications. Due to their strength and resilience, carbide dies are widely used in metal forming, wire drawing, extrusion, and other demanding manufacturing operations. In this article, we will explore the significance of carbide dies, their benefits, manufacturing process, and the industries that rely on them.
1. What Are Carbide Dies?
Carbide dies are tools made from Tungsten Carbide, a compound known for its exceptional hardness and durability. Tungsten Carbide is a composite material consisting of tungsten and carbon atoms. When combined, they create a material that is much harder than steel, making carbide dies incredibly resistant to wear, heat, and deformation. These properties make carbide dies ideal for high-stress environments where other materials might fail.
Carbide dies are primarily used in manufacturing processes where materials, such as metals, need to be shaped or formed with high precision. This can include cutting, punching, drawing, extrusion, and stamping. Their ability to maintain their sharpness and shape under extreme conditions makes them indispensable in modern manufacturing.
2. Benefits of Carbide Dies
Carbide dies offer numerous advantages compared to traditional steel or other material dies. Some of the key benefits include:
High Hardness and Strength: Tungsten Carbide is known for its hardness, which is much higher than that of standard tool steel. This allows carbide dies to handle extremely hard materials, including high-strength alloys, without significant wear or damage to the die itself.
Wear Resistance: One of the most significant advantages of carbide dies is their resistance to wear and abrasion. In high-volume production environments, where dies are subjected to constant stress, carbide’s wear-resistant properties ensure that the tools can maintain their shape and function over long periods, reducing the need for frequent replacements.
Heat Resistance: Carbide dies perform exceptionally well under high temperatures, which are often generated during metal forming and cutting processes. Their ability to withstand heat without losing hardness or changing shape is crucial in applications like wire drawing, where friction generates significant heat.
Precision and Accuracy: The use of carbide dies in manufacturing allows for the production of parts with extremely tight tolerances. This precision is essential in industries like aerospace, automotive, and electronics, where even the smallest deviation from design specifications can lead to failures in assembly or operation.
Longer Tool Life: Thanks to their durability and resistance to wear, carbide dies have a significantly longer tool life than other materials. This reduces downtime for die replacement and maintenance, leading to higher production efficiency and lower overall costs.
3. Manufacturing Process of Carbide Dies
Creating carbide dies involves several key steps to ensure they meet the rigorous demands of industrial applications:
Powder Mixing and Pressing: The process begins with mixing fine tungsten carbide powder with a binder, typically cobalt, to hold the carbide particles together. The mixture is then pressed into a die of the desired shape using high-pressure methods, forming a solid "green" die.
Sintering: After pressing, the green die is heated in a sintering furnace. During this process, the carbide particles bond together to create a dense, solid piece of material. The sintering process enhances the hardness and strength of the die, making it ready for industrial use.
CNC Machining and Polishing: Once sintering is complete, the carbide die may undergo further machining to achieve precise dimensions and surface finishes. Computer Numerical Control (CNC) machines are often used to shape the die with high accuracy. After machining, the dies are polished to ensure smooth surfaces, which are critical for processes like extrusion or wire drawing.
Heat Treatment and Coating: Some carbide dies may undergo additional heat treatment or surface coating to enhance specific properties, such as corrosion resistance or further wear resistance.
4. Applications of Carbide Dies
Carbide dies are used across a wide range of industries due to their versatility and durability. Some common applications include:
Wire Drawing: Carbide dies are essential in the wire drawing process, where metal wire is pulled through a series of dies to reduce its diameter. The wear resistance of carbide ensures that the dies maintain their size and shape, allowing for consistent wire quality over long production runs.
Cold Heading and Stamping: Cold heading is the process of forming fasteners, such as screws and bolts, by striking metal into a mold. Carbide dies are used to form the heads of fasteners without breaking or wearing down, even under extreme pressures.
Extrusion: In the extrusion process, material is forced through a die to create objects with a fixed cross-sectional profile. Carbide dies are ideal for this application because they can withstand the heat and pressure involved in shaping materials like aluminum, copper, and steel.
Punching and Blanking: Carbide dies are used in sheet metal operations like punching and blanking, where metal sheets are cut into specific shapes. The high hardness of carbide allows for clean, precise cuts, even in thick or hard materials.
5. Industries that Rely on Carbide Dies
Many industries benefit from the use of carbide dies in their manufacturing processes. Some key sectors include:
Automotive: The automotive industry relies on carbide dies for producing components like engine parts, fasteners, and structural elements. The high precision and wear resistance of carbide dies ensure that these parts are produced to exacting specifications and can withstand the harsh conditions in vehicles.
Aerospace: Aerospace manufacturers use carbide dies to produce components that must meet stringent safety and performance standards. The ability to maintain precision and resist wear in high-stress applications makes carbide dies invaluable in this industry.
Electronics: In the electronics industry, carbide dies are used to produce small, intricate components like connectors and terminals. The accuracy provided by carbide dies is critical for ensuring reliable electrical connections in devices.
Construction: Carbide dies are used to produce fasteners, nails, and other components that are essential in the construction industry. The durability of carbide dies ensures that these components are produced efficiently and can withstand the stresses of use in building projects.
Conclusion
Carbide dies are indispensable tools in the manufacturing industry, offering unmatched hardness, durability, and precision. Their ability to withstand wear, heat, and high-stress environments makes them ideal for a wide range of applications, from wire drawing and cold heading to extrusion and punching. As industries continue to demand higher precision and efficiency, carbide dies will remain at the forefront of innovation in manufacturing, helping to produce the high-quality components that modern technology and infrastructure require.
