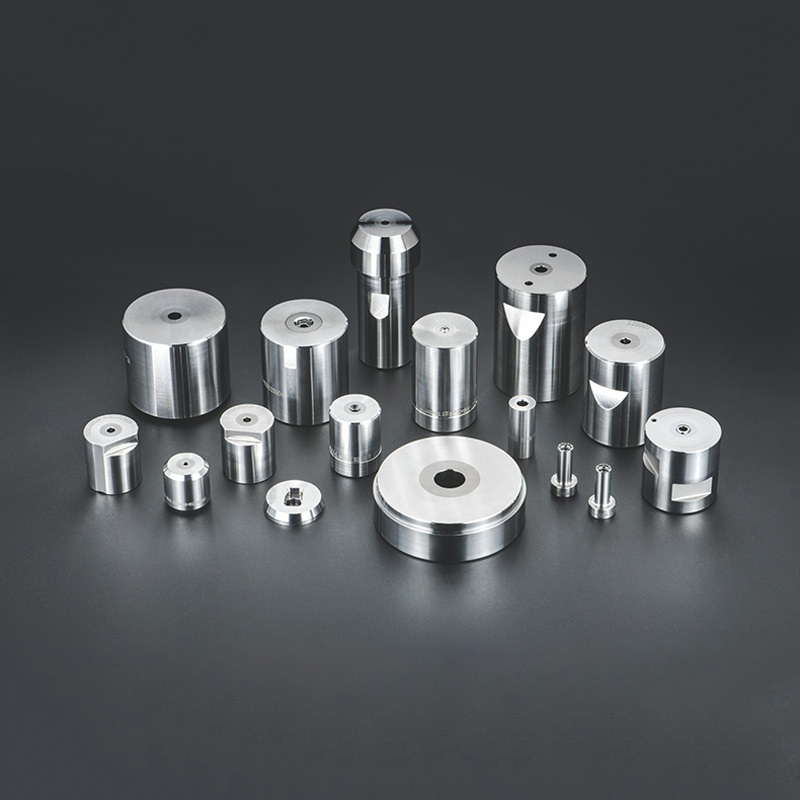

Carbide Dies play a crucial role in various metal forming processes, particularly in industries that require high strength and wear resistance, such as cold heading, stamping, injection molding, and more. Carbide dies are known for their exceptional hardness, wear resistance, and heat resistance, making them a preferred choice in applications across the automotive, aerospace, and electronics sectors. However, despite their superior performance, carbide dies can still experience wear and damage under high-pressure conditions. To maximize the service life of carbide dies, effective measures must be taken to optimize die design, material selection, operation, and maintenance.
1. Choose High-Quality Carbide Materials
The first step in extending the lifespan of carbide dies is selecting the right carbide material. Carbide dies are typically made from Tungsten Carbide or other alloyed carbide materials that offer exceptional hardness and wear resistance. Choosing the appropriate carbide material for the specific application is critical. Here are key factors to consider:
Tungsten Carbide (WC): Tungsten Carbide is the most commonly used material for carbide dies due to its extreme hardness and resistance to wear. It is ideal for applications requiring high impact resistance and prolonged die life.
Cobalt-Bonded Carbide: For applications requiring additional toughness along with wear resistance, cobalt-bonded carbide is a good choice. It provides better shock resistance while maintaining hardness.
Grain Size: Finer grain carbide materials typically offer better wear resistance and surface finish, while coarser grain carbide provides increased toughness. The appropriate grain size should be selected based on the specific needs of the application.
2. Proper Die Design and Optimization
The design of the carbide die is just as important as the material choice in prolonging its service life. A well-designed die can reduce excessive wear and increase its operational efficiency. Some key design considerations include:
Stress Distribution: Proper die design should ensure that forces are evenly distributed throughout the die. Uneven stress distribution can lead to localized wear or cracking, shortening the die's lifespan.
Cooling Channels: The incorporation of efficient cooling channels in the die design can significantly reduce thermal fatigue, preventing excessive heat buildup that can degrade the carbide material over time.
Surface Treatment: Applying surface coatings or treatments such as nitriding or carburizing can enhance the wear resistance of carbide dies and reduce the risk of corrosion.
3. Optimize the Manufacturing Process
The way in which the carbide die is used in the manufacturing process has a significant impact on its lifespan. Several factors during the production process should be optimized to minimize die wear:
Pressing Force: Overloading a carbide die with excessive pressure can lead to premature wear, chipping, or even catastrophic failure. It is important to ensure that the pressing force is within the recommended range for the material and die design.
Cycle Time: Frequent and rapid cycling can cause thermal shock, leading to faster wear and potential cracking. By controlling cycle time and ensuring a consistent production pace, you can help reduce unnecessary stress on the die.
Lubrication: Proper lubrication helps reduce friction and wear between the die and the workpiece. Using high-quality lubricants that are compatible with the material being formed can extend the life of the die. For example, in cold heading processes, using an appropriate lubricant reduces metal-on-metal contact, minimizing wear.
4. Regular Maintenance and Inspection
Routine maintenance and inspections are vital to ensuring that carbide dies continue to perform at their best. Regular monitoring helps identify issues before they lead to significant damage. Maintenance practices include:
Cleaning: Regular cleaning of the die is essential to prevent metal buildup, debris, and contaminants from damaging the die surface. Cleaning also helps ensure that the die operates smoothly and maintains a consistent quality of the produced parts.
Inspection for Cracks or Wear: Carbide dies should be regularly inspected for signs of cracking, chipping, or excessive wear. Early detection of these issues allows for timely repairs, avoiding complete die failure. Common methods of inspection include visual inspection, ultrasonic testing, and eddy current testing.
Re-grinding and Sharpening: Over time, carbide dies may lose their sharpness or experience surface wear. Re-grinding or sharpening the die to restore its original geometry is an effective way to extend its service life. However, this must be done carefully to avoid altering the die’s functionality.
5. Avoid Overloading the Die
One of the leading causes of premature die wear is overloading the carbide die with too much force. Overloading can cause excessive deformation, leading to cracks, surface damage, or breakage. To avoid overloading:
Monitor Load Levels: Always ensure that the load applied during the forming process is within the limits recommended by the manufacturer of the carbide die.
Material Compatibility: The type and hardness of the material being processed can have a significant impact on the die’s lifespan. Softer materials are generally easier on the die, while harder materials may require more care and attention to prevent excessive wear.
6. Reduce Thermal Stress
Excessive heat buildup can lead to thermal fatigue, which accelerates wear and crack formation in carbide dies. To reduce thermal stress:
Control Heating and Cooling Rates: Gradually heating and cooling the die during operation helps prevent rapid temperature changes, which can cause cracks or surface damage. Proper cooling mechanisms should be incorporated into the die design to maintain a consistent temperature.
Avoid Direct Contact with Hot Workpieces: When handling materials with high thermal conductivity, make sure they are adequately pre-cooled or pre-heated before coming into contact with the die. This reduces the risk of thermal shock.
7. Implement Proper Handling and Storage
How carbide dies are handled and stored also plays a crucial role in their longevity. Proper handling can prevent accidental damage, while correct storage helps maintain the quality of the die material.
Avoid Dropping or Bumping: Carbide dies are brittle and can crack or chip if dropped or mishandled. Always use appropriate lifting and handling equipment when moving dies to avoid impact damage.
Store in Dry, Clean Conditions: Storing carbide dies in a dry, clean environment helps prevent corrosion and material degradation. Humidity and contaminants can weaken the die material over time, leading to premature failure.
Extending the service life of carbide dies requires a multifaceted approach that involves selecting high-quality materials, optimizing die design, fine-tuning manufacturing processes, implementing regular maintenance, and ensuring proper handling and storage. By focusing on these critical areas, manufacturers can significantly reduce wear and tear on carbide dies, enhancing their performance, reducing downtime, and ultimately improving production efficiency. Proper care and attention to carbide die maintenance not only save costs on replacements but also contribute to overall improvements in manufacturing quality and sustainability.
