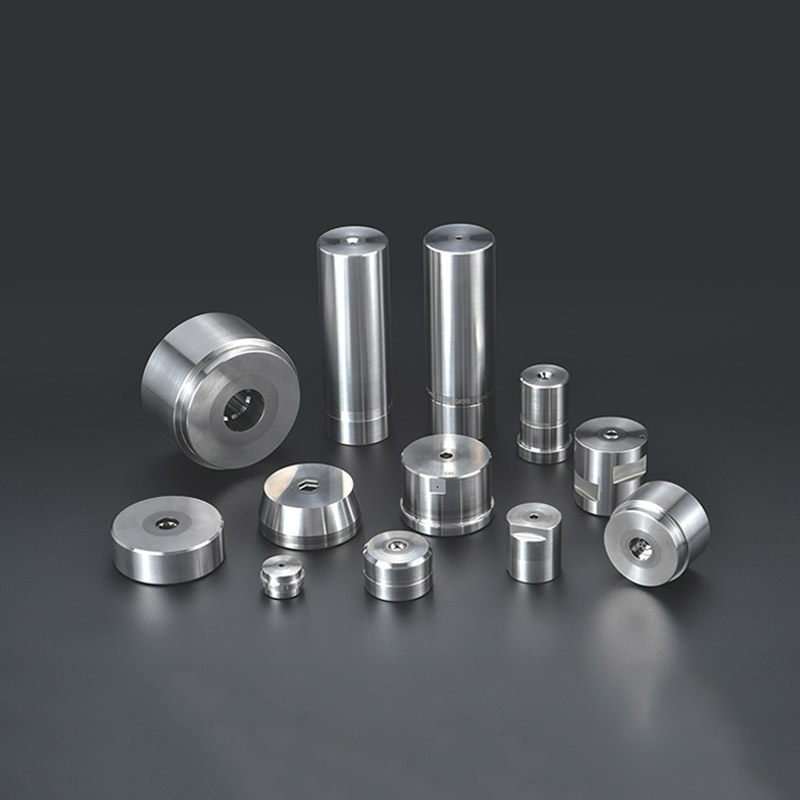

Tungsten Carbide dies are essential tools in various high-precision manufacturing processes, such as cold heading, stamping, and extrusion. Known for their exceptional hardness, wear resistance, and heat tolerance, Tungsten Carbide Dies are the go-to solution for industries that require high-performance, durable dies for producing metal parts. However, with the variety of Tungsten Carbide materials, grades, and design options available, selecting the right die can be a complex task. This article provides guidance on how to choose the most suitable Tungsten Carbide Dies for your specific needs.
1. Understand the Application Requirements
The first step in selecting the right tungsten carbide die is understanding the specific requirements of the application. Different manufacturing processes impose different demands on the die, and choosing the wrong die can result in poor performance, frequent wear, or even die failure. Key application considerations include:
Type of Metal Being Processed: Tungsten carbide dies are ideal for working with hard, high-strength metals such as steel, stainless steel, aluminum, and titanium. The hardness and toughness of the tungsten carbide should match the material being formed. Softer metals might require a different material to optimize die life.
Forming Process: Different forming processes such as cold heading, extrusion, or stamping have varying pressure and heat requirements. For example, cold heading processes involve high-pressure forces, which require tungsten carbide dies with high wear resistance and toughness. Stamping or extrusion, on the other hand, may require dies with specific shaping or cutting capabilities.
Part Complexity and Geometry: The complexity of the part being produced also influences the choice of tungsten carbide die. Intricate geometries and fine tolerances require dies with excellent precision. Additionally, if parts have sharp corners or fine details, a die with excellent cutting capabilities is essential.
2. Consider the Grade of Tungsten Carbide
Tungsten carbide comes in various grades, and selecting the right one is crucial for ensuring optimal die performance and longevity. The grade is determined by the material composition, including the amount of tungsten carbide (WC) content and the binder material used (usually cobalt or nickel). Common grades include:
WC-Co (Tungsten Carbide-Cobalt): This is the most widely used grade of tungsten carbide, ideal for general applications requiring high hardness and wear resistance. The cobalt binder provides additional toughness, making it suitable for high-impact applications.
WC-Ni (Tungsten Carbide-Nickel): This grade is often used in applications where corrosion resistance is more important than toughness. It is commonly used in the chemical processing industry and for producing parts that will be exposed to harsh environments.
Fine-Grain Tungsten Carbide: Fine-grain tungsten carbide offers superior wear resistance, making it suitable for high-precision applications and fine details. This grade is often used in applications like cold heading or for small, delicate parts.
Coarse-Grain Tungsten Carbide: Coarse-grain tungsten carbide offers better toughness, which is ideal for applications that involve high-impact or heavy-duty operations. This grade is commonly used for heavy-duty forming processes like extrusion or forging.
3. Evaluate the Die's Design Features
The design of the tungsten carbide die is another crucial factor in its performance and longevity. Several design features can affect how well the die performs in a given application, including:
Die Geometry and Shape: Tungsten carbide dies must be designed to accommodate the specific part geometry. This includes considerations for the size and shape of the die cavity, as well as any special features such as holes, slots, or sharp corners. The design must allow for the efficient flow of material into the die cavity while maintaining precise tolerances.
Cooling Channels: Incorporating efficient cooling channels into the die design can help manage the heat generated during the manufacturing process, particularly in high-speed or high-pressure applications. Proper cooling can prevent overheating, reduce thermal stress, and improve die longevity.
Surface Finish: The surface finish of the die plays a role in its performance, particularly when producing parts with smooth surfaces or high tolerance requirements. A smooth die surface reduces friction, improves material flow, and helps minimize wear.
Ejector Pins: Some tungsten carbide dies may include ejector pins to assist in removing the formed parts from the die cavity. These pins should be designed to prevent damage to the part and the die while ensuring smooth ejection.
4. Consider the Size and Durability of the Die
Tungsten carbide dies come in various sizes depending on the size of the parts being produced. Selecting a die that matches the scale of production is important to ensure that it can withstand the forces exerted during manufacturing.
Small-Scale vs. Large-Scale Production: For small-batch or high-precision applications, smaller dies with fine tolerances may be required. For large-scale production, a more robust die with a focus on durability and wear resistance is essential. Large-scale production may also benefit from dies designed for faster cycle times.
Durability and Wear Resistance: One of the key benefits of tungsten carbide is its superior wear resistance. However, dies used in high-volume production may still experience significant wear over time. It’s essential to select a die that is designed to withstand the specific pressures and temperatures of the process to maximize its lifespan.
Maintenance Considerations: Consider how easy it will be to maintain or repair the tungsten carbide die. Dies used in continuous operations may require frequent maintenance or periodic refurbishing. A die that is easier to maintain can reduce downtime and operational costs.
5. Factor in Cost and Performance Trade-offs
While tungsten carbide dies offer outstanding performance and durability, they can be expensive due to the cost of materials and manufacturing. It's essential to balance cost with the expected performance requirements:
Cost-Effectiveness: While high-quality tungsten carbide dies may come with a higher initial cost, they often provide longer service life and better performance in demanding applications, resulting in a lower overall cost per part in the long run.
Performance Requirements: If your application involves high-precision, high-stress, or high-speed production, investing in premium tungsten carbide dies with superior hardness and wear resistance is worth the additional cost. On the other hand, for lower-demand applications, a less expensive grade or a die with less stringent specifications might be sufficient.
6. Choose a Reliable Manufacturer
Selecting a reputable manufacturer that specializes in tungsten carbide dies is crucial for ensuring consistent quality and performance. The manufacturer should have experience in producing dies for your specific application and be able to offer technical support during the selection process. Key factors to consider when choosing a manufacturer include:
Customization Capabilities: The manufacturer should be able to customize the tungsten carbide die to meet your specific needs, including modifications to die geometry, size, and surface treatment.
Quality Control: A reliable manufacturer will have stringent quality control processes in place to ensure that each die meets the required specifications and is free from defects.
After-Sales Support: Consider the level of after-sales support provided by the manufacturer, including warranty, maintenance, and repair services. A good manufacturer will stand behind their product and assist with any issues that arise during the life of the die.
Choosing the right tungsten carbide die involves a careful evaluation of your application’s requirements, the material grade, die design features, and the expected operating conditions. By understanding these factors and working closely with a trusted manufacturer, you can select the most suitable tungsten carbide die that will maximize your production efficiency, improve the quality of your products, and extend the die’s service life. With the right die, your manufacturing process will become more reliable, cost-effective, and capable of meeting the highest industry standards.
