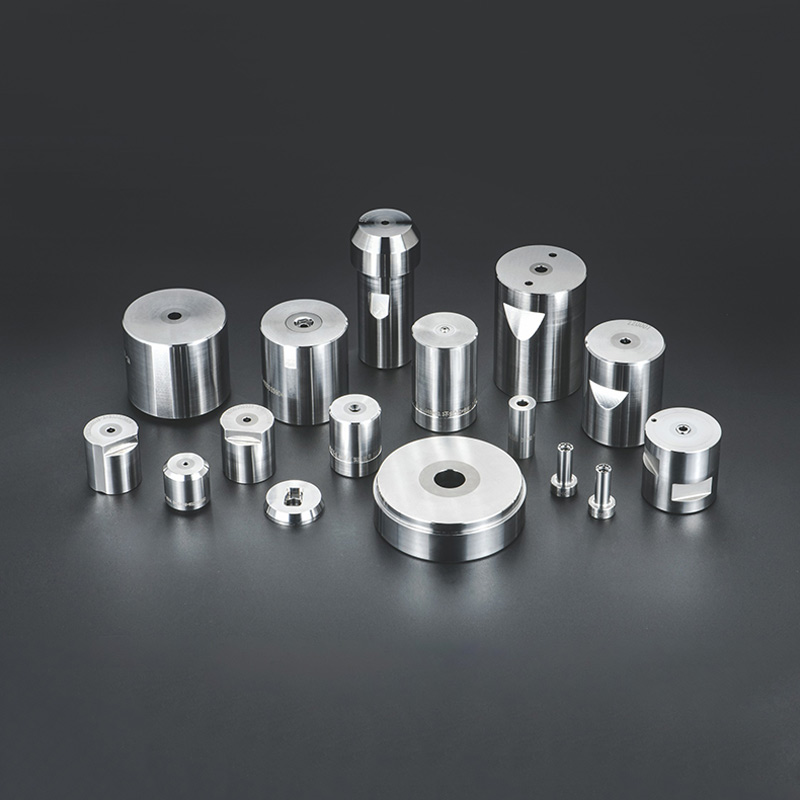

​What Are Carbide Dies?

Carbide Dies are precision tooling components made from cemented carbide and are widely used for metal forming, cold heading, wire drawing, extrusion, and fastener manufacturing. With high hardness, excellent wear resistance, and high compressive strength, Carbide Dies are designed for demanding production environments where tooling is exposed to repeated pressure, friction, and impact.

So, what are Carbide Dies used for? They are commonly used to shape and control the dimensions of metal materials during manufacturing. Typical applications include screws, bolts, nuts, rivets, wires, rods, and other precision metal components.

What Are Carbide Dies?

Carbide Dies are dies manufactured using cemented carbide as the primary tooling material. Cemented carbide commonly contains Tungsten Carbide as the hard phase and a metallic binder such as cobalt.

The carbide material provides the hardness and wear resistance required for repeated forming operations. Depending on the application, Carbide Dies can be designed with customized cavities, profiles, tolerances, and surface finishes.

Key Features of Carbide Dies

• High hardness

• Excellent wear resistance

• High compressive strength

• Good dimensional stability

• Precise cavity and profile

• Suitable for repeated forming operations

• Suitable for high-volume production

• Customized specifications available

What Are Carbide Dies Used For?

Carbide Dies are used in various metalworking processes. The specific application depends on the workpiece material, forming method, product geometry, and production requirements.

Cold Heading

One of the main applications of Carbide Dies is cold heading. During cold heading, metal wire or billets are formed at room temperature under high pressure.

Carbide Cold Heading Dies are commonly used to manufacture screws, bolts, rivets, and other fasteners. The die controls the shape and dimensions of the workpiece during the forming process.

Fastener Manufacturing

Fastener Dies are used in the production of screws, bolts, nuts, rivets, and other metal fasteners. Carbide tooling can be used for different forming stages according to the fastener design and manufacturing process.

Common applications include:

• Screw forming

• Bolt forming

• Rivet forming

• Upsetting

• Forward extrusion

• Backward extrusion

• Precision fastener forming

Wire Drawing

Carbide Drawing Dies are used to reduce the diameter or cross-sectional dimensions of metal wire and rods.

During the drawing process, the workpiece passes through a precisely machined die opening. The wear resistance of carbide helps maintain the die profile and dimensional consistency during continuous production.

Metal Forming

Carbide Dies can also be used for general Metal Forming applications. They can be manufactured with different cavities and profiles to form metal components according to specific product requirements.

Extrusion

In extrusion applications, metal material is forced through a die to produce a specific shape or cross-section. Carbide Tooling can be used where high wear resistance and dimensional stability are required.

Carbide Dies vs. Tungsten Carbide Dies

Tungsten Carbide Dies are a common type of Carbide Dies. Cemented carbide uses tungsten carbide as its primary hard phase, combined with a binder material to achieve the required balance of hardness and toughness.

Therefore, the terms Carbide Dies and Tungsten Carbide Dies may be used in closely related applications, although the exact material composition and grade can vary.

For SEO and product classification, Carbide Dies can be used as the broader product term, while Tungsten Carbide Dies can describe tooling specifically based on tungsten carbide.

Why Use Carbide Dies?

Carbide Dies are selected for applications that require resistance to wear, pressure, and repeated mechanical stress.

High Wear Resistance

The wear resistance of carbide helps maintain the working cavity and profile during repeated production cycles.

High Hardness

The high hardness of carbide makes it suitable for demanding forming and drawing applications.

Dimensional Stability

Precise die geometry is important for producing components with consistent dimensions. Properly designed Carbide Dies can maintain their working profile under suitable operating conditions.

Suitable for High-Volume Production

Carbide tooling can be used in continuous manufacturing processes where dies are exposed to repeated forming cycles.

Carbide Dies for Fastener Manufacturing

In fastener manufacturing, Carbide Dies can work together with punches to form metal wire or billets into the required fastener geometry.

For example, during cold heading, the punch applies forming force while the die supports and controls the material. The punch and die must be designed to match the product geometry and forming process.

Carbide Cold Heading Dies are therefore commonly used for applications involving high forming pressure and repeated production cycles.

Customized Carbide Dies

Different metal forming applications require different die dimensions, cavity profiles, tolerances, and material specifications. Customized Carbide Dies can be manufactured according to technical drawings, samples, or specific production requirements.

Product Specifications

How to Choose Carbide Dies?

Selecting suitable Carbide Dies requires consideration of the workpiece material, forming process, product geometry, machine type, production volume, and required tolerances.

For Carbide Cold Heading Dies, the carbide grade and die geometry should be suitable for repeated impact and compressive loads. For Carbide Drawing Dies, wear resistance and dimensional stability are important considerations.

The cavity profile, surface finish, tolerance, and material grade should be selected according to the specific application and production conditions.

Carbide Dies Manufacturer

Carbide Dies are precision tooling products that require accurate machining, suitable carbide materials, and controlled cavity geometry. They can be customized for different applications, including cold heading, fastener manufacturing, wire drawing, extrusion, and metal forming.

Whether you need Carbide Dies, Tungsten Carbide Dies, Carbide Cold Heading Dies, Carbide Drawing Dies, or Fastener Dies, customized tooling can be manufactured according to your drawings, samples, machine specifications, and production requirements.

For customized Carbide Dies, provide your product drawings, samples, dimensions, or application requirements for tooling evaluation.
