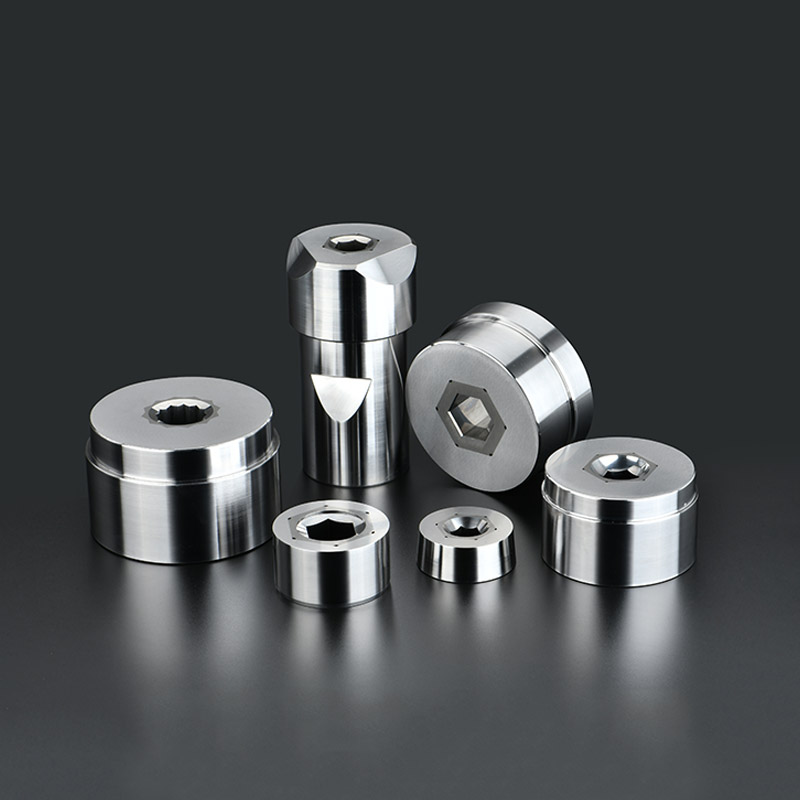

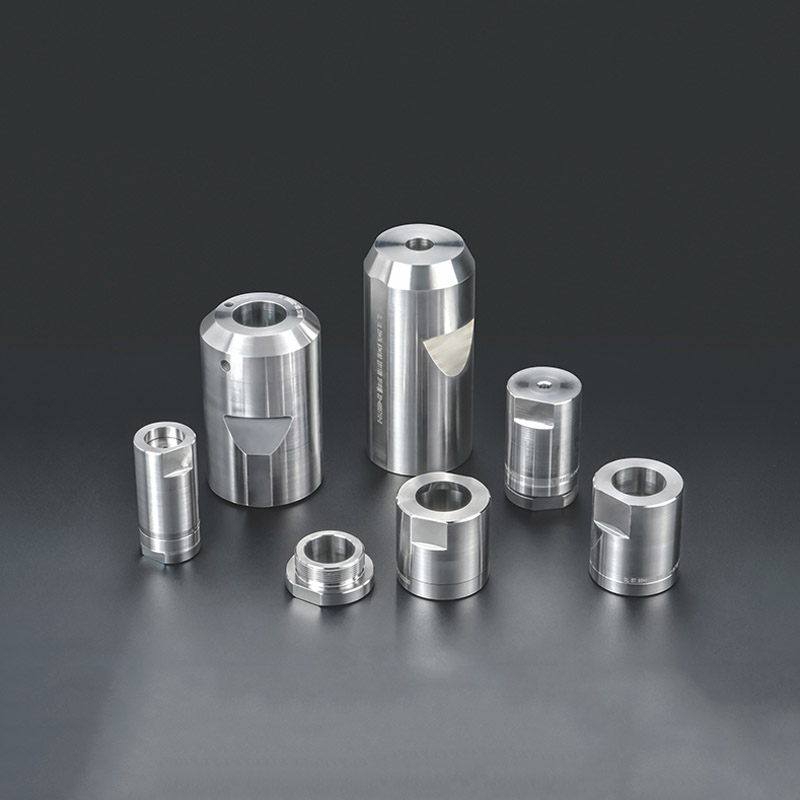

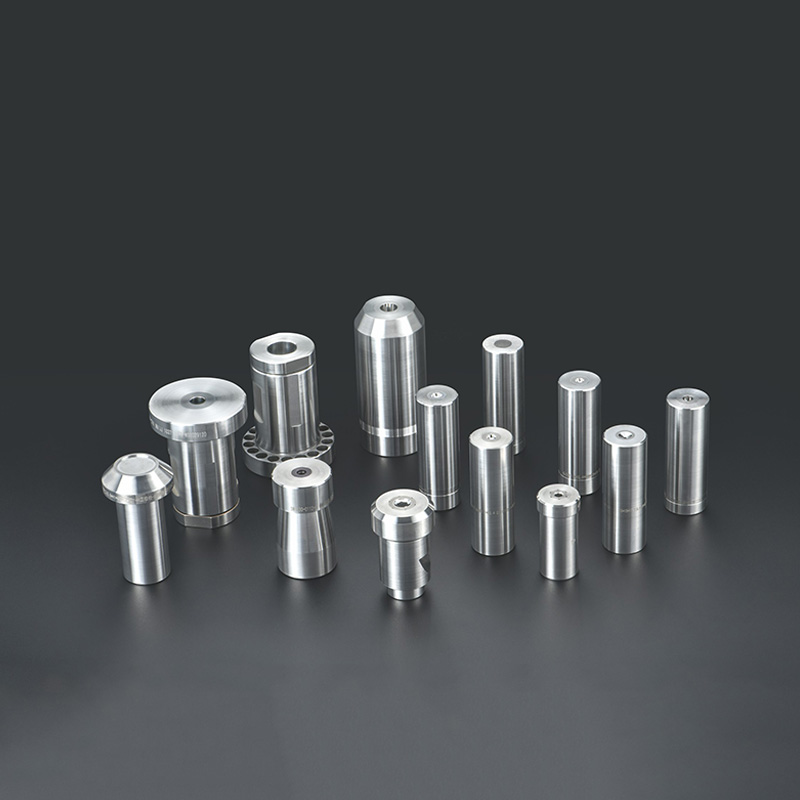

Cold Heading Die

Cold Heading Dies are crucial tools used in the manufacturing of metal parts like bolts, nuts, and screws. They play a vital role in the Cold Heading process, shaping metal wire or rod into the desired form at room temperature. Typically crafted from high-speed steel or cemented carbide, Cold Heading Dies boast high hardness and wear resistance. Their intricate design includes multiple die cavities for shaping the metal. The manufacture of these dies requires precision machining and heat treatment to ensure hardness, wear resistance, and dimensional stability. High-quality Cold Heading Dies significantly enhance production efficiency, reduce energy consumption, and lower manufacturing costs. Consequently, they hold a pivotal position in the metalworking industry, impacting the precision, quality, and cost-effectiveness of produced metal parts. As such, continual advancements in cold heading die technology are essential for improving manufacturing processes and ensuring the production of high-quality metal components.

Advantage:

• High hardness and wear resistance: Usually made of high-speed steel or carbide, it has excellent hardness and wear resistance and can withstand high-intensity cold heading processing.

• High precision: Precision machining and heat treatment ensure that the mold has good dimensional stability and can produce metal parts with precise dimensions.

• High efficiency: High-quality cold heading dies can improve production efficiency, reduce processing time, and increase the output of the production line.

• Reduce costs: By improving production efficiency and extending the service life of molds, energy consumption and production costs can be reduced, and the economics of production can be improved.

• Good surface quality: cold heading dies can produce metal parts with smooth surfaces and no burrs, improving the quality and appearance of the product.

• Strong customizability: According to different production needs, cold heading dies of different shapes and sizes can be customized to meet the production requirements of different products.

Application areas:

• Automotive industry: used in the production of automotive parts, such as bolts, nuts, pins and other fasteners in engines, chassis, transmission systems, etc.

• Electronics industry: used in the production of connectors in electronic products, such as screws, nuts, connecting rods, etc. in mobile phones, computers, household appliances, etc.

• Machinery industry: used to produce fasteners and connectors in various mechanical equipment, including engineering machinery, agricultural machinery, mining equipment, etc.

• Construction industry: used to produce bolts, screws, nuts and other connecting parts in building structures, including steel structures, bridges, stairs, handrails, etc.

• Aerospace industry: Fasteners and connectors used in the production of aircraft, rockets, and aerospace devices are crucial to the quality and safety of aerospace products.

• Home appliance industry: used in the production of components in home appliances, such as fasteners and connectors for air conditioners, washing machines, refrigerators, etc., to ensure the stability and durability of the products.

Future Development Trend:

• High precision: As product precision requirements increase, cold heading dies require higher processing accuracy and dimensional stability to meet customer demand for precision parts.

• High wear resistance: The cold heading mold will be severely worn during long-term use, so it needs to have higher wear resistance to extend the service life of the mold.

• Intelligence: Introduce intelligent manufacturing technology, such as sensor monitoring, data collection and analysis, etc., to realize intelligent management and maintenance of cold heading dies, and improve production efficiency and quality stability.

• Energy saving and emission reduction: By optimizing the cold heading process and mold design, energy consumption and material waste are reduced, production costs are reduced, and green manufacturing is achieved.

• Customization: According to the individual needs of customers, we customize cold heading dies to provide more professional and precise solutions to meet the production requirements of different industries and products.

• Multifunctionality: Develop multifunctional cold heading dies to form metal parts of various shapes at one time, improving production efficiency and process flexibility.

• Material innovation: Develop new cold heading mold materials, such as new high-speed steel, superhard alloy, etc., to improve the wear resistance, strength and toughness of the mold.

• Processing technology innovation: Develop new processing technology, such as CNC machining, laser manufacturing, etc., to improve the processing accuracy and efficiency of cold heading dies and promote the progress and development of cold heading technology.

FAQ：

What is Cold Heading Die?

Cold Heading Die is a mold used in the cold heading process. It is a tool used to press metal wires or bars into the desired shape at room temperature. It is usually used to produce bolts, nuts, screws and other metal parts.

What materials are Cold Heading Dies usually made of?

Cold Heading Dies are usually made of high speed steel or carbide. High-speed steel has excellent machinability and wear resistance, while cemented carbide has higher hardness and wear resistance.

What is the manufacturing process of Cold Heading Die?

The manufacturing process of Cold Heading Die includes the following steps:

• Design: Design the structure of the mold according to the shape and size requirements of the product.

• Precision machining: CNC machining equipment is used to precisely process the mold to ensure dimensional accuracy and surface quality.

• Heat treatment: After heat treatment process, the hardness and wear resistance of the mold are improved.

• Precision grinding: Precision grinding of the mold to further improve dimensional accuracy and surface quality.

What are the main advantages of Cold Heading Die?

• High hardness and wear resistance

• High precision and dimensional stability

• High productivity and economy

What are the main application areas of Cold Heading Die?

Cold Heading Die is mainly used in the automotive industry, electronics industry, machinery industry, construction industry, aerospace industry, home appliance industry and other fields.

What is the service life of a Cold Heading Die?

The service life of a Cold Heading Die depends on factors such as the material, design, processing quality, and usage conditions of the mold. Generally, high-quality molds can withstand hundreds of thousands or even millions of cold heading processes.

What are the maintenance methods for Cold Heading Die?

• Clean the mold surface regularly to prevent metal shavings from accumulating.

• Use a suitable cooling lubricant to reduce friction and wear.

• Regularly check the wear of the mold and promptly repair or replace seriously damaged parts.

What are the common faults of Cold Heading Die?

• Wear: Due to long-term use, the surface of the mold will appear worn, resulting in inaccurate product dimensions or reduced surface quality.

• Fracture: Due to stress concentration or fatigue damage, the mold may fracture, affecting production efficiency and product quality.

How to ensure the processing accuracy of Cold Heading Die?

• Use precision processing equipment and advanced processing technology.

• Strictly control the quality of each processing link to ensure dimensional accuracy and surface quality.

• Carry out precision measurement and inspection, and conduct dimensional inspection and surface quality inspection of processed molds.

What are the design principles of Cold Heading Die?

• The structure is simple and reasonable, and easy to process and maintain.

• Minimize the waste of metal materials and improve the economy and sustainability of the mold.

• Consider the shape and size requirements of the product to ensure that the mold can meet the needs of the production process.
