Cold Heading Molds are essential tools used in the Cold Heading process, a type of metal forming technology used to produce high-precision, high-strength parts. This process is primarily used in the manufacturing of fasteners such as bolts, nuts, rivets, and other small metal components. Cold heading, also known as cold forging, involves shaping metal at room temperature, making it an energy-efficient and cost-effective way to produce parts with superior mechanical properties. Cold Heading Molds play a crucial role in determining the accuracy, durability, and quality of these components.
What is Cold Heading?
Cold heading is a metalworking process in which a piece of metal, usually a wire or bar, is placed into a die and formed into a specific shape by applying compressive force. This force is typically applied using a high-speed mechanical press or hammer. Since the metal is deformed at room temperature, it retains the properties of the original material, such as strength, hardness, and durability.
Cold heading is commonly used to create components like bolts, screws, rivets, and pins, all of which are used in a wide range of industries, from automotive to construction. Cold heading molds are used in this process to guide and shape the metal into the desired form with extreme precision.

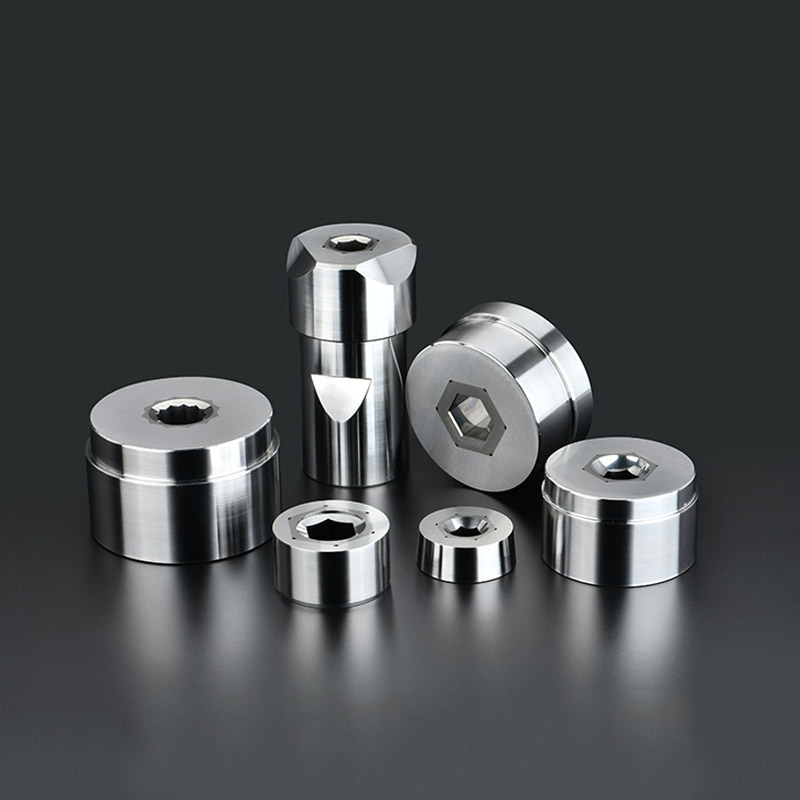

What is a Cold Heading Mold?
A cold heading mold is a specially designed tool used in the cold heading process to shape and form metal components. It consists of several key parts, including:
Die (Forming Die): The die is the primary component of the mold, and it determines the final shape of the metal part. The material is forced into the die cavity, where it takes on the desired shape through deformation. Dies are designed with intricate cavities that correspond to the exact shape of the component being produced.
Punch (or Punching Tool): The punch is the tool that applies force to the material, pushing it into the die cavity. It is typically the part that makes direct contact with the metal and is responsible for shaping it. Punches are made of high-strength materials to withstand the intense pressure during the forming process.
Retainer and Backing Plates: These components help to hold the die and punch in place during the cold heading process. They provide the necessary support to ensure accurate and consistent results.
Cutting Blade or Shear: In some cold heading processes, the metal material needs to be cut to size before or after forming. A cutting blade or shear is used to trim the material, ensuring that it fits perfectly into the die for the next stage of forming.
Ejector Pins: In some cases, ejector pins may be used to remove the finished part from the die after it has been formed. These pins push the finished part out of the mold cavity, allowing it to be collected for further processing.
How Does a Cold Heading Mold Work?
The cold heading process begins with feeding a metal wire or bar into the cold heading machine. The mold is mounted in the machine, and the material is positioned between the die and the punch. The punch then exerts high pressure on the metal, forcing it into the die cavity. The material is compressed, and the metal flows into the shape defined by the die.
As the punch continues to apply force, the metal undergoes significant plastic deformation. In some cases, the metal may be preheated slightly to make it more malleable, but the majority of the process occurs at room temperature. Once the desired shape is achieved, the mold components, such as ejector pins, may help remove the finished part, which is then sent for further processing or finishing, such as heat treatment or surface coating.
Applications of Cold Heading Molds
Cold heading molds are widely used in industries that require high-strength, durable fasteners and components. Some of the most common applications include:
Automotive Industry: Cold heading is commonly used in the production of automotive fasteners such as bolts, screws, and rivets. These parts must meet stringent quality standards due to their critical role in the performance and safety of vehicles.
Construction: Cold heading is used to produce a variety of fasteners, including nails, anchors, and screws, which are essential for construction projects. Cold heading molds ensure the precision and reliability of these components.
Electronics: The electronics industry relies on small, high-precision parts like connectors and terminals, which can be efficiently produced using cold heading molds.
Aerospace: In the aerospace industry, components must meet strict quality requirements and be able to withstand extreme conditions. Cold heading molds are used to produce fasteners and parts that are critical for the construction of aircraft.
Industrial Equipment: Cold heading molds are used in the production of parts for industrial machinery, such as shafts, gears, and other critical components.
Materials Used for Cold Heading Molds
The materials used for cold heading molds must be highly durable and resistant to wear and tear due to the intense pressure applied during the cold heading process. The most commonly used materials include:
High-Speed Steel (HSS): High-speed steel is often used for cold heading molds because of its excellent wear resistance and ability to maintain sharp cutting edges under high temperatures.
Tool Steel: Tool steels such as D2, H13, and A2 are commonly used for Cold Heading Dies due to their toughness and hardness.
Carbide: In some cases, carbide may be used for cold heading molds, especially for high-volume production of hard-to-form materials. Carbide offers exceptional hardness and wear resistance.
Alloy Steels: Alloy steels are sometimes used for cold heading molds because they can be engineered to achieve specific mechanical properties, such as increased toughness or improved wear resistance.
Advantages of Cold Heading Molds
High Efficiency: Cold heading molds allow for the rapid production of large quantities of parts, making them ideal for high-volume manufacturing. The cold heading process can produce parts at a high rate, reducing labor and production costs.
Precision and Consistency: The use of cold heading molds ensures that parts are produced with high accuracy and repeatability. The precision of the mold directly affects the quality of the final product, ensuring tight tolerances and consistent results.
Superior Mechanical Properties: Cold heading produces parts with superior mechanical properties, including high tensile strength, hardness, and durability. This makes cold-headed parts ideal for applications where strength and reliability are critical.
Material Savings: Cold heading allows manufacturers to produce complex parts from relatively simple raw materials, reducing waste and optimizing material usage.
Minimal Post-Processing: Cold heading parts often require minimal post-processing, such as finishing or machining, since the cold heading process produces parts with a high degree of accuracy and smooth surfaces.
Challenges in Cold Heading Mold Design
Wear and Tear: Due to the high forces involved in the cold heading process, molds can experience significant wear over time. Regular maintenance and occasional replacement of parts like punches and dies are required to maintain mold performance.
Complex Design: Designing cold heading molds requires a high level of expertise to ensure that they can withstand the pressure and produce parts with the required precision. Complex parts with intricate geometries may require specialized molds.
Material Selection: Choosing the right material for the mold is critical to ensure long service life and consistent performance. The wrong material can lead to premature mold failure, which can disrupt production.
Cold heading molds are critical components in the manufacturing of high-precision metal parts. By using cold heading molds, industries such as automotive, aerospace, electronics, and construction can produce parts with superior strength, accuracy, and durability. These molds play a vital role in ensuring efficient, high-quality production, making them an essential tool in modern manufacturing. Proper design, material selection, and maintenance of cold heading molds are essential to ensuring long-lasting performance and optimal results in the cold heading process.
