Hot Heading Dies play a crucial role in the forging process, especially in the production of metal parts that require high precision and strength. These dies are essential for shaping and forming materials at high temperatures, making them vital in industries such as automotive, aerospace, and manufacturing. In this article, we will delve into the design, materials, and applications of hot forging dies, as well as the processes and tools involved in metal forming.
What Are Hot Heading Dies?

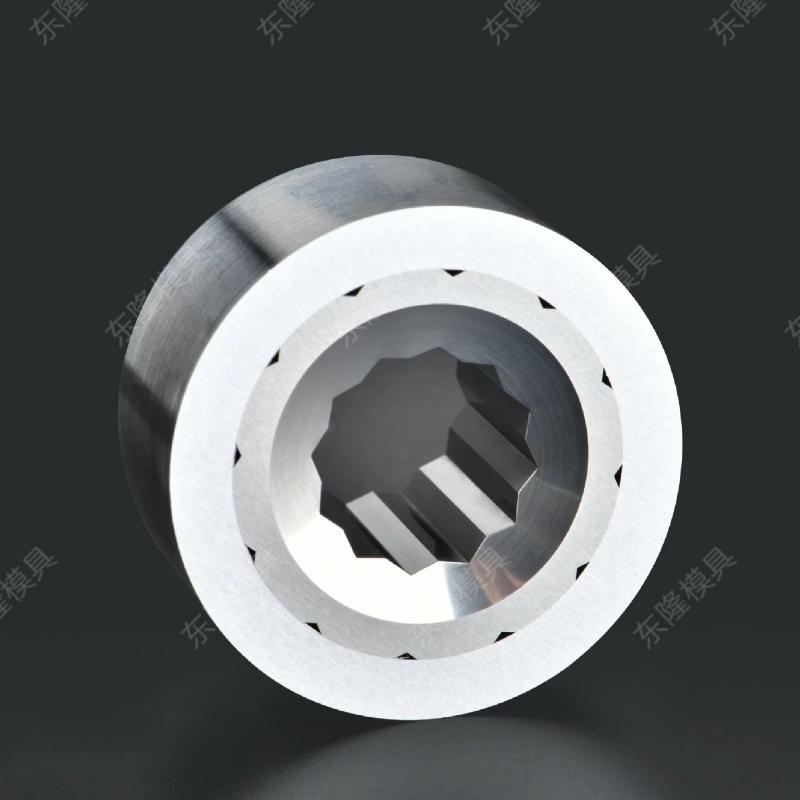

Hot heading dies are specialized tools used in the hot heading process, where metal is heated to high temperatures and then formed into specific shapes using dies. Unlike Cold Heading, which involves deforming metal at room temperature, hot heading uses elevated temperatures to improve metal flow, reduce material strain, and enhance overall workability. The primary function of these dies is to shape metal by applying pressure in a controlled manner to produce parts with consistent dimensions and high strength.
The Forging Process
The forging process involves shaping metal through the application of localized compressive forces. Hot forging and hot heading are essential parts of this process. In hot heading, metal is typically heated to temperatures between 900°C to 1,200°C, making it more malleable and easier to form. Once the metal reaches the desired temperature, it is placed in a hot heading die and subjected to pressure, which causes it to take the shape of the cavity inside the die. The die design must be precise to ensure the final part meets the required specifications.
Die Design and Materials
The design of the die is critical in the forging process. A well-designed die ensures optimal material flow, minimizing defects, and maximizing the die's lifespan. The die must withstand the high temperatures and mechanical forces involved in hot heading, making the selection of die materials crucial.
Steel Dies are commonly used for hot heading due to their high strength and durability. Tool steel, in particular, is often the material of choice, as it offers excellent resistance to wear and tear, as well as the ability to withstand high temperatures. These materials are selected based on their hardness, toughness, and ability to retain strength at elevated temperatures.
High-Temperature Dies and Their Challenges
High-temperature dies are designed to operate under extreme heat conditions. The die material must be able to handle not only the high temperature of the metal being forged but also the stresses associated with repeated use. The challenges associated with high-temperature forging include thermal fatigue, erosion, and wear, all of which must be considered when designing and selecting materials for hot heading dies.
Precision Dies for High-Quality Parts
In industries such as automotive and aerospace, precision dies are necessary to ensure that the final product meets strict tolerance and quality standards. Parts produced using hot heading dies must be precise, as even minor discrepancies can lead to functional or safety issues in the final application. Precision forging tools are designed to produce components with a high degree of accuracy, reducing the need for further machining and improving overall efficiency in the manufacturing process.
Applications of Hot Heading Dies
Hot heading applications are widespread across various industries. For example, in the automotive industry, hot forging dies are used to produce high-strength bolts, gears, and other critical components. These parts must be durable and able to withstand the harsh conditions they will encounter, making the forging process essential to achieving the desired material properties.
In aerospace manufacturing, hot heading dies are used to create parts that require both strength and light weight. Tool steel and other high-performance materials ensure that the dies can withstand the extreme conditions encountered in the production of aerospace components.
Forging Tools and Die Maintenance
Forging tools play a significant role in ensuring the success of the hot heading process. These tools are designed to handle the immense forces required to shape the metal while ensuring consistent quality and performance. Proper maintenance of the dies and forging tools is essential to maintaining their effectiveness and extending their lifespan. Regular inspection and reconditioning of dies help minimize downtime and maximize productivity in the manufacturing process.
Hot heading dies are integral to the precision metal forming process. The combination of hot forging dies, die materials, forging tools, and careful die design ensures that metal components are produced with the highest quality and precision. Whether for automotive, aerospace, or general manufacturing applications, these dies provide the strength, durability, and performance needed to meet the demands of modern industries. By selecting the right materials, ensuring proper maintenance, and employing effective forging techniques, manufacturers can produce high-quality parts that meet the exact specifications required for their intended use.
